DK09

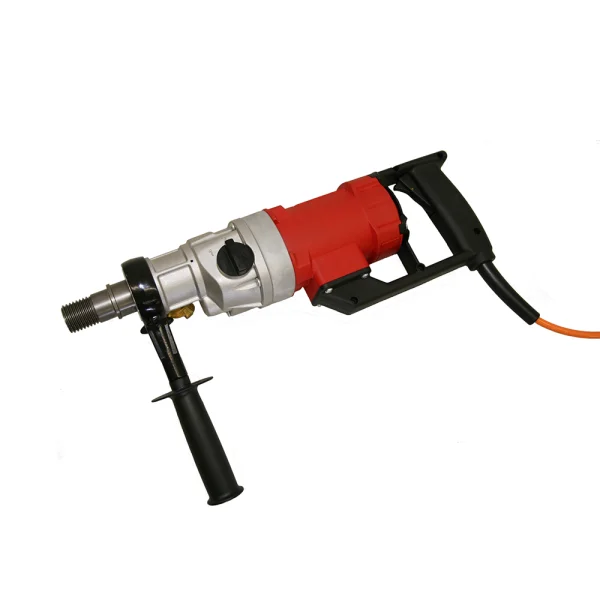

Diamond Core Drill
Drilling range: 30-200 mm
Nominal power: 1800 W
Speeds: 2
Powerful core drilling machine, ideal for wet and dry drilling, 2-speed gearbox with oil bath lubrication and overload clutch. Motor protection and soft start by Intellitronic.
Nominal power | W | 1800 |
Output power | W | 1200 |
Rated speed | 1/min | 540/1700 |
Total length | mm | 485 |
Weight without cable | kg | 5,2 |
Drilling Ø c. | ||
rig operated (concrete) | mm | 30-150 |
hand-held (concrete) | mm | 30-80 |
hand-held (masonry) | mm | 30-200 |
Tool fixture | 1 1/4″ | |
Mounting neck Ø | mm | 60 |
